COSY131 Remote Access



Industrial Remote Access Gateway Cosy 131
and the Talk2M worldwide VPN infrastructure enable Machine Builders to troubleshoot their machines without going on-site, drastically reducing support costs, improving customer responsiveness, and increasing machine up-time
How does Ewon Secured Connectivity work?
Ewon industrial routers (DIN rail mounted, 24VDC) are built to fit within the automation panel and can communicate with both Ethernet and serial devices . The Ewon device makes an outbound connection via UDP or HTTPS to HMS cloud based VPN servers called (Talk2M). Using the VPN client eCatcher, authorized users are able to log into their FREE Talk2M account and connect to their Ewon router anywhere in the world. The Talk2M server acts as a secure broker and completes the encrypted VPN tunnel between the remote user and the equipment connected to the Ewon router.

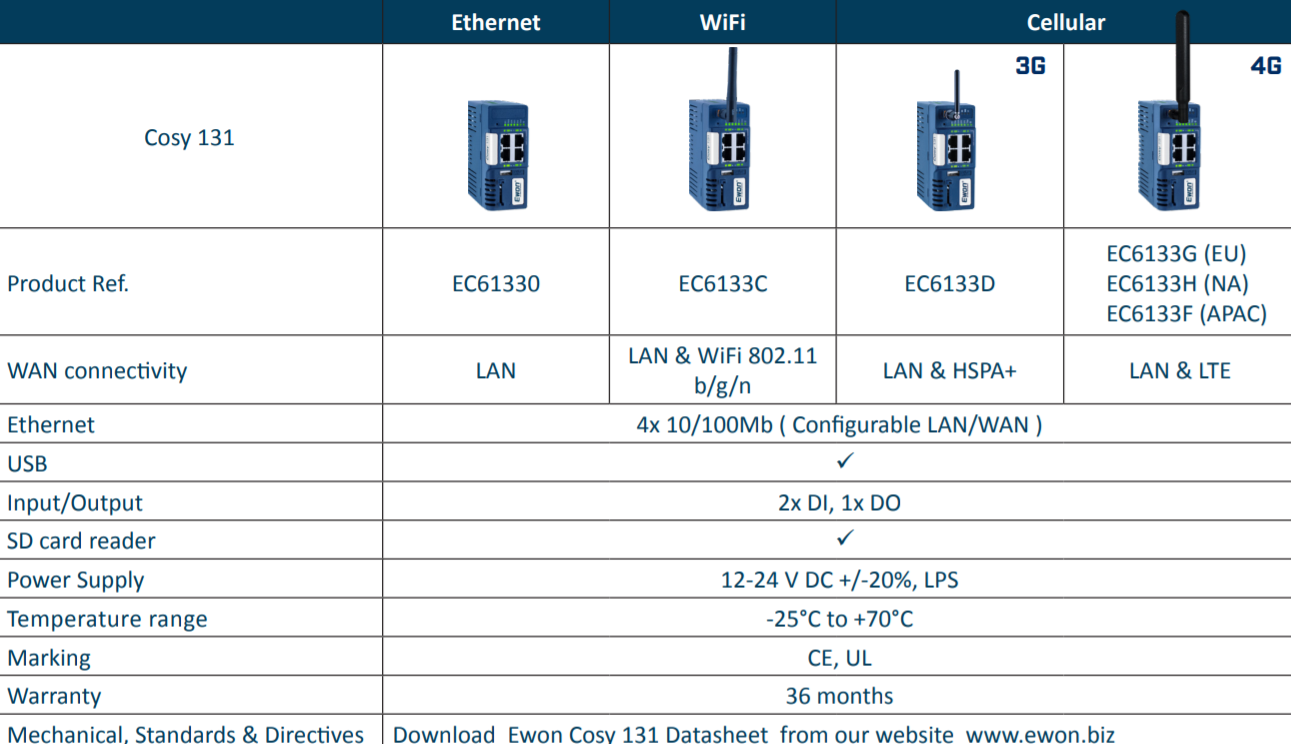

Specification

  • Integrated WiFi or 4G Cellular options
  • Ethernet 4x10/100Mb (Configurable LAN/WAN)
  • Firewall friendly outbound connection
  • Standard ports used: 443 (HTTPS), 1194 (UDP)
  • Possible to configure the Digital Inputs to control internet connection with external key switch or to send alarm notification
  • SD card option for easy commissioning
  • Input/Output 2xDI,1xDO
  • USB connectivity for micro-PLCs
  • 24 VDC power supply and DIN rail mount
  • Temperature range: -25 °C to +60 °C
Typical Applications
  • Remote access to PLC, IPC, HMI or IP camera
  • PLC remote Service and Support
