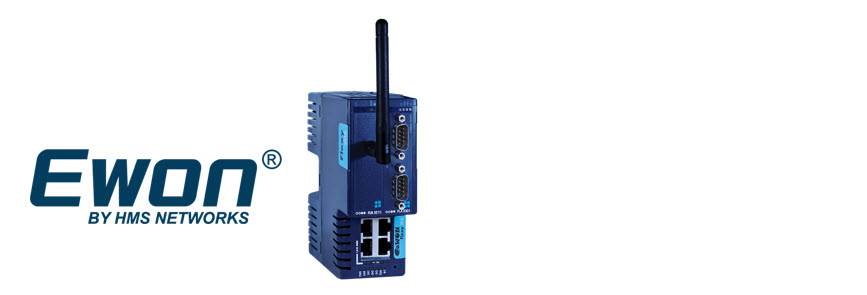

FLEXY205 Remote Data

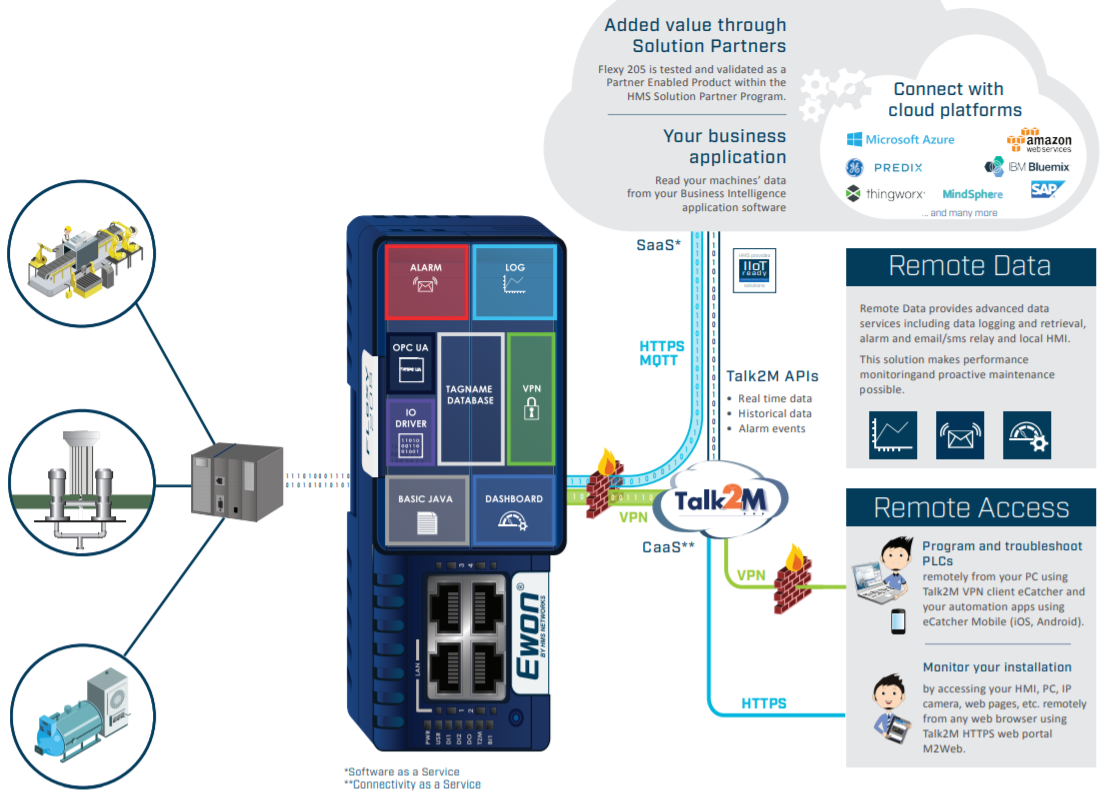

Ewon Flexy205 IIoT Gateway and Remote Access Router with VPN Connectivity is a compact modular gateway for collecting Remote Data and providing Remote Access to your industrial equipment. With a configurable WAN/LAN switch, this gateway offers a wide range of extension cards to best fit your application and is perfect for data-intensive applications. Whether your requirements are to: create alarms, monitor dashboards, collect data for machine performance analysis, or even other advanced solutions.

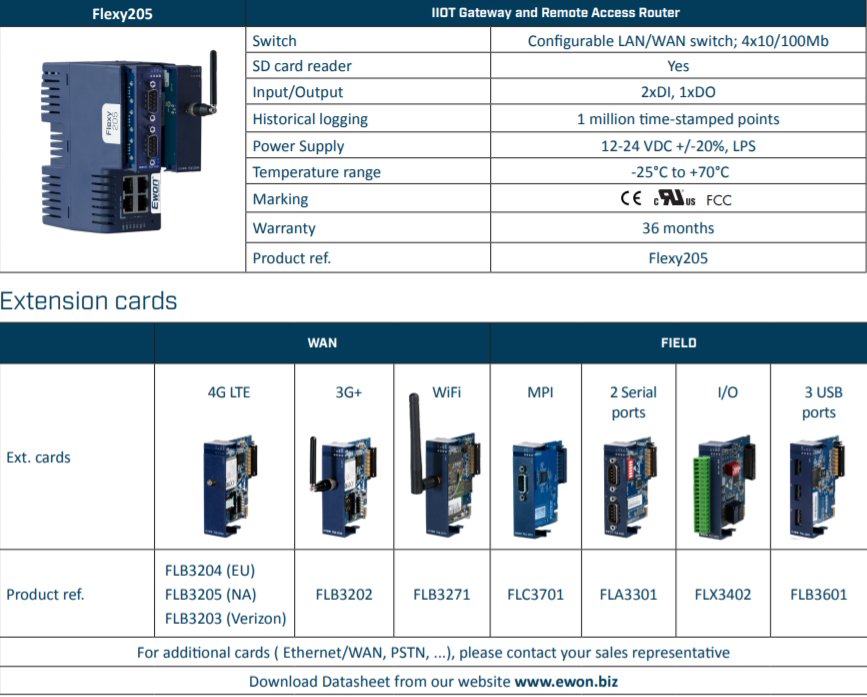

Specification

Extension Card Option WiFi or 4G Cellular MPI Serial Port I/O and USB
Ethernet 4x10/100Mb (Configurable LAN/WAN)
Firewall friendly outbound connection
Standard ports used: 443 (HTTPS), 1194 (UDP)
Historical logging : 1 million time-stamped option
Possible to configure the Digital Inputs to control internet connection with external key switch or to send alarm notification
SD card reader
Input/Output 2xDI,1xDO
USB connectivity for micro-PLCs
12-24 VDC power supply and DIN rail mount
Temperature range: -25 °C to +70 °C
